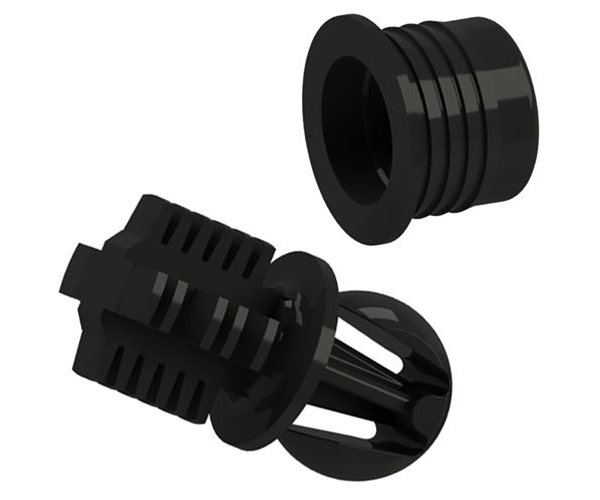

Tree-Lok Access Panel Fastener | Stud | Standard slide 3

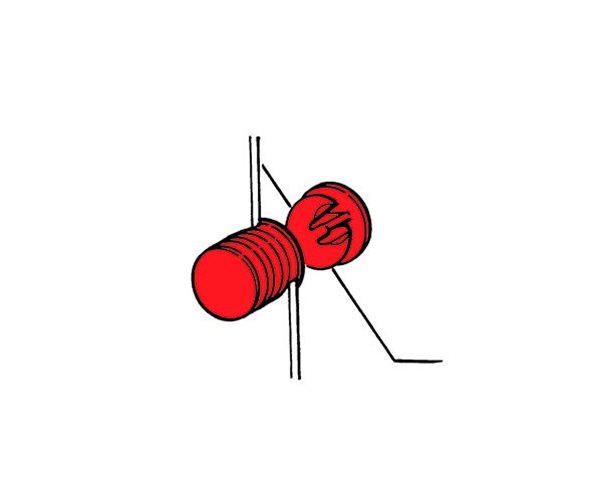

Tree-Lok Access Panel Fastener | Stud | Standard slide 4

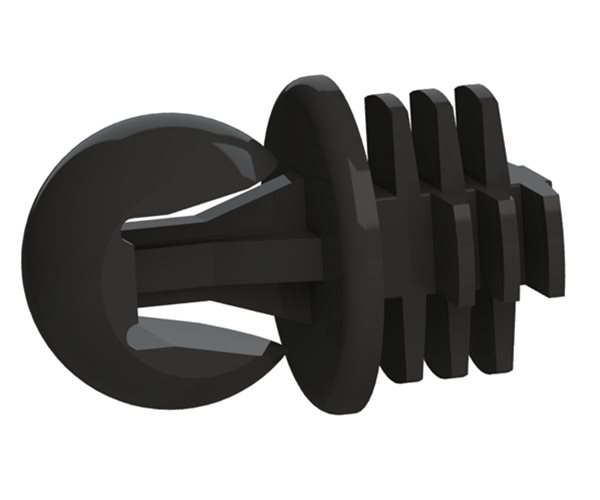

Tree-Lok Access Panel Fastener | Stud | Standard slide 5

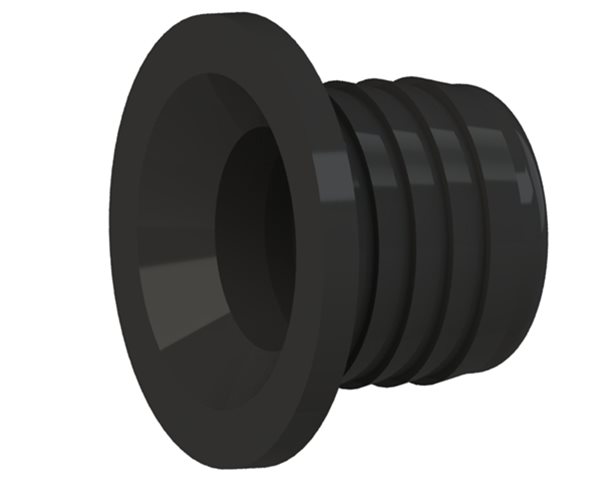

Tree-Lok Access Panel Fastener | Stud | Standard slide 6

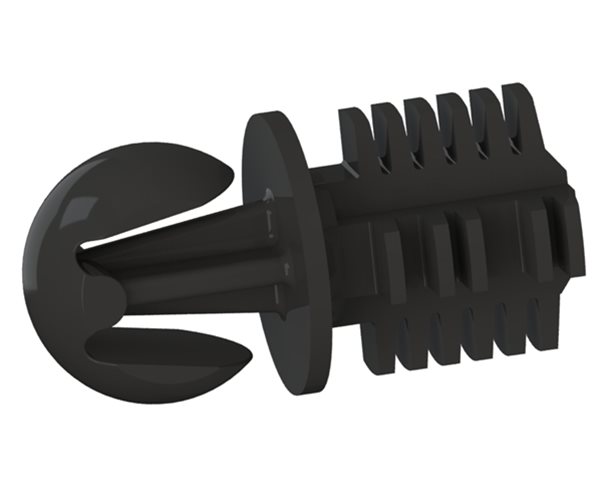

Tree-Lok Access Panel Fastener | Stud | Standard slide 7

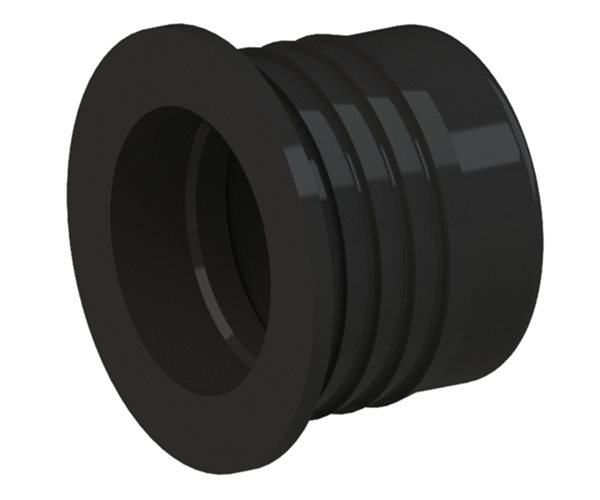

Tree-Lok Access Panel Fastener | Stud | Standard

FTS003-BLK In stock
£19.00
Pack size: 100
No. of packs Pack price
1+ £19.00
Access panels can be secured using a Tree-Lok Fastener. The neat and efficient socket and stud design allows the easy opening of panels. Suitable for inspection covers, with a moderate level of pull-out force.

If required the stud can be used without the socket in certain applications. In this case, the hole diameter will change from D2 to D3.

Typical applications include inspection covers, furniture, kitchen units and lightweight doors.

Material - Nylon
Typical Colour - Black



Drawings and images are for reference only and should not be used for product specification. For new applications we recommend that you carry out assembly tests using samples supplied by us.

PLEASE NOTE - To view all product variations/specification, please scroll the table below from left to right


Code Description PRICE PRICE
BREAKS
PACK
SIZE
STOCK NO
PACKS
BUY SAMPLE CAD
FTS001-BLK Tree-Lok Stud - Mini £18.18
No. of packs Pack price
1+ £18.18
10+ £12.91
50+ £10.00
100 Buy Request sample
FTS002-BLK Tree-Lok Socket - Mini £16.34
No. of packs Pack price
1+ £16.34
10+ £11.60
50+ £8.99
100 Buy Request sample
FTS003-BLK Tree-Lok Stud - Standard £19.00
No. of packs Pack price
1+ £19.00
100 Buy Request sample
FTS005A-BLK Tree-Lok Socket - Standard £29.90
No. of packs Pack price
1+ £29.90
10+ £23.94
25+ £20.39
50+ £15.78
100+ £11.26
100 Buy Request sample
D1 D2 D3 H1 H2 L T1 Finish
7.9 - - 6.5 - 8.5 1.2 Colour Black
- 10.3 7.9 - 9.6 - - Colour Black
11.1 - - 11.2 - 11.5 1.0 Colour Black
- 14.3 10.9 - 11.4 - - Colour Black

All dimensions are mm unless specified.

  • Technical
  • Specifications
D1
11.1
D2
-
D3
-
H1
11.2
H2
-
L
11.5
T1
1.0
Tree lock access panel fastener dimensional guide displayed with and without socket
Product Code
FTS003-BLK
Description
Tree-Lok Stud - Standard
Product
Panel Fastener
Type
Tree-Lok Stud

All dimensions are mm unless specified.
