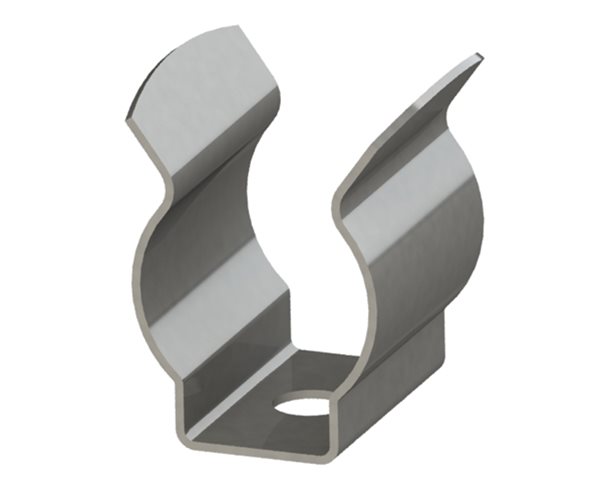

Tool Clips | Spring Steel Clips | 26-30mm Cable Dia slide 1
Tool Clips | Spring Steel Clips | 26-30mm Cable Dia slide 2

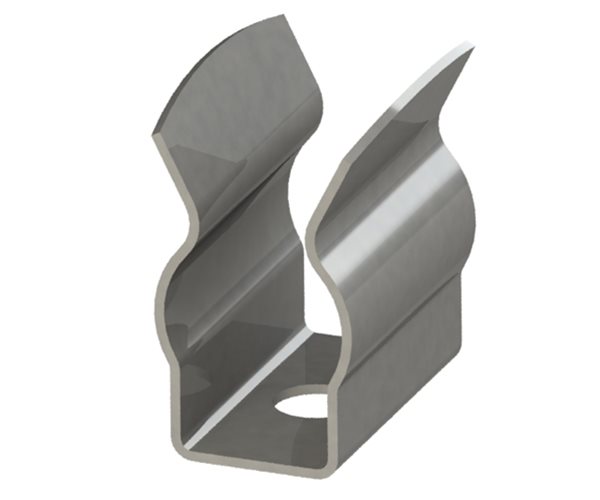

Tool Clips | Spring Steel Clips | 26-30mm Cable Dia slide 3

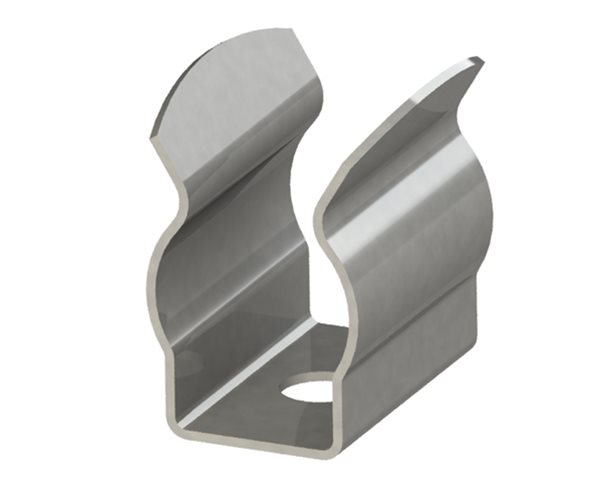

Tool Clips | Spring Steel Clips | 26-30mm Cable Dia slide 4

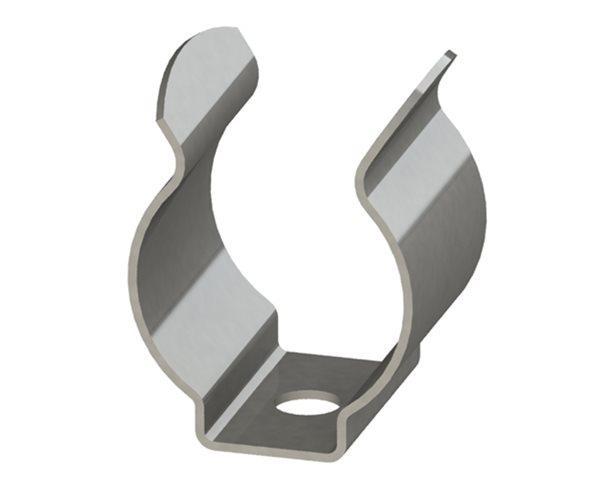

Tool Clips | Spring Steel Clips | 26-30mm Cable Dia slide 5

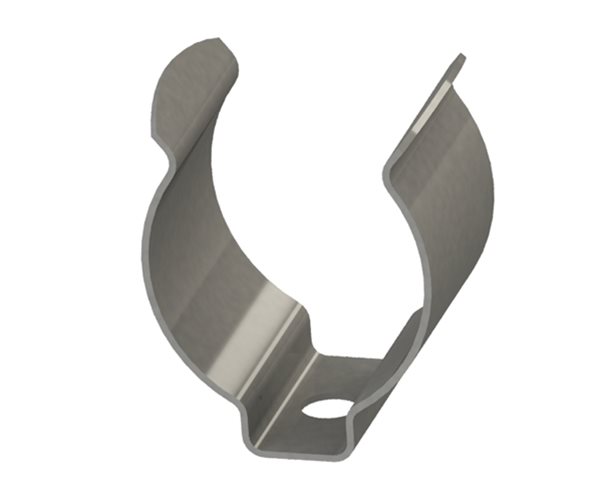

Tool Clips | Spring Steel Clips | 26-30mm Cable Dia slide 6

Tool Clips | Spring Steel Clips | 26-30mm Cable Dia

CRF038-TZP In stock
£34.92
Pack size: 100
No. of packs Pack price
1+ £34.92

Tool Clips also known as Metal Spring Clips, Terry Clips or Terry Tool Clips rotate through 360° allowing pipes or cables to follow their natural contour without vibration or chafing. The central mounting hole allows rivet or screw fixing. The stand-off base configuration isolates the fixing head from the retained cable or pipe.

These Tool Clips / Metal Spring Clips can be fixed together at their base to form a Swivel TypeIn-Air Cable and Pipe Clip.

Typical applications include agricultural equipment, motor vehicles, domestic appliances, plumbing and electrical contracting.

Material - Carbon Spring Steel





Drawings and images are for reference only and should not be used for product specification. For new applications we recommend that you carry out assembly tests using samples supplied by us.

PLEASE NOTE - To view all product variations/specification, please scroll the table below from left to right


Code Description PRICE PRICE
BREAKS
PACK
SIZE
STOCK NO
PACKS
BUY SAMPLE CAD
CAC284-DEL120BLK Retention Type £28.58
No. of packs Pack price
1+ £28.58
100 Buy Request sample
CAC287-ZNTR96 Retention Type £40.62
No. of packs Pack price
1+ £40.62
100 Buy Request sample
CAC287-PPBLK Retention Type £40.62
No. of packs Pack price
1+ £40.62
100 Buy Request sample
CRF038-TZP Retention Type £34.92
No. of packs Pack price
1+ £34.92
100 Buy Request sample
CRF041-TZP Retention Type £45.82
No. of packs Pack price
1+ £45.82
100 Buy Request sample
CAC285-ZNTR400 Retention Type £23.90
No. of packs Pack price
1+ £23.90
100 Buy Request sample
CAC286-DEL120BLK Retention Type £14.87
No. of packs Pack price
1+ £14.87
100 Buy Request sample
CRF045-TZP Retention Type £62.82
No. of packs Pack price
1+ £62.82
100 Buy Request sample
D D1 H W OEM Reference Finish
12.0 - 13.0 5.0 21.3 19.0 ASU1384 Delta Seal 120 Hours Salt Spray Black
21.0 - 25.0 5.0 27.8 19.0 759755 Electro Zinc Plate 12.5µm thick & Cr3 Passivate
21.0 - 25.0 5.0 27.8 19.0 759755 Phosphate, Paint Black
26.0 - 30.0 5.0 32.6 20.0 Electro Zinc Plated Trivalent Passivate
31.0 - 36.0 5.0 38.5 20.0 Electro Zinc Plated Trivalent Passivate
13.0 - 16.0 5.0 20.6 19.0 MRC7623 Electro Zinc Plate 8µm & Cr3 Passivate + Sealant
17.0 - 20.0 5.0 23.8 19.0 C38827/1 Delta Seal 120 Hours Salt Spray Black
31.0 - 36.0 6.0 39.5 17.5 Electro Zinc Plated Trivalent Passivate

All dimensions are mm unless specified.

  • Technical
  • Specifications
D
26.0 - 30.0
D1
5.0
H
32.6
W
20.0
Steel spring clip dimensional linedrawing graph displaying the clipping process
Product Code
CRF038-TZP
Description
Retention Type
Max Cable / Pipe Diameter (mm)
30.0
Min Cable / Pipe Diameter (mm)
26.0
Type
Heavy Duty

All dimensions are mm unless specified.
