TUI104 Threaded Metal Round Tube Inserts
Please note: this is a representative image and may differ from the actual product.

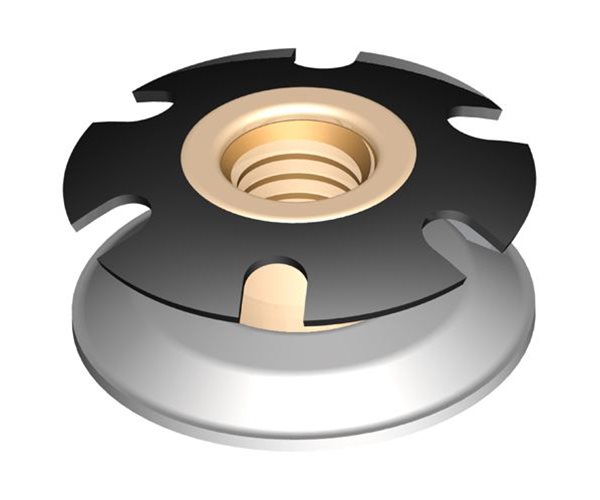

Round Tube Insert | Threaded | Metal Insert | M8 x 25.4mm Dia slide 1
Round Tube Insert | Threaded | Metal Insert | M8 x 25.4mm Dia slide 2

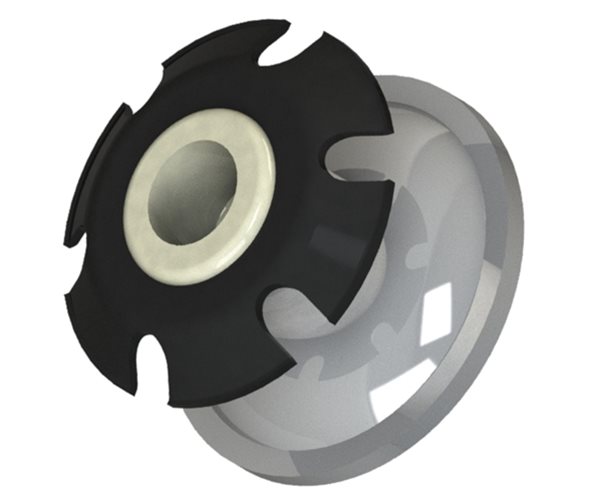

Round Tube Insert | Threaded | Metal Insert | M8 x 25.4mm Dia slide 3

Round Tube Insert | Threaded | Metal Insert | M8 x 25.4mm Dia

TUI105-BZP Out of stock
£71.61
Pack size: 100
No. of packs Pack price
1+ £71.61

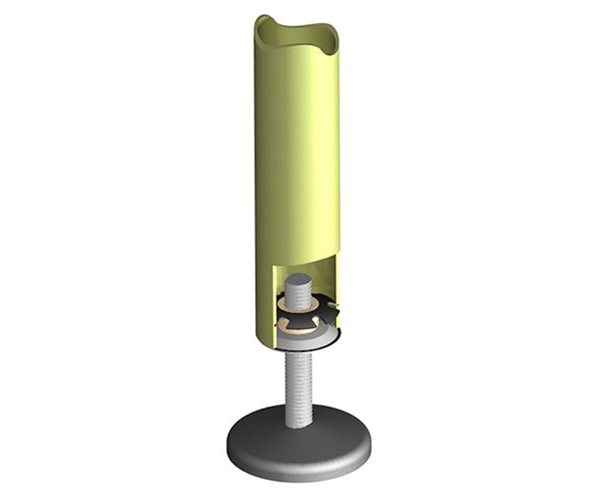

These round metal tube inserts use an internal carbon steel retaining washer to grip the inside of the leg providing a solid, threaded anchor to attach castors, feet or glides to the bottom of legs. Application is simple as the Tube Insert can be gently tapped into position.

An added benefit is the attractive finish of the mild steel casing which provides a neat external finish to the cut end of each leg.

D = Outer diameter of tube.

Materials - Mild Steel (Housing), Carbon Steel (Washer)





Drawings and images are for reference only and should not be used for product specification. For new applications we recommend that you carry out assembly tests using samples supplied by us.

PLEASE NOTE - To view all product variations/specification, please scroll the table below from left to right


Code Description PRICE PRICE
BREAKS
PACK
SIZE
STOCK NO
PACKS
BUY SAMPLE CAD
TUI102-BZP Round Metal Insert £57.35
No. of packs Pack price
1+ £57.35
100
TUI103-BZP Round Metal Insert £63.09
No. of packs Pack price
1+ £63.09
10+ £53.00
100 Buy Request sample
TUI104-BZP Round Metal Insert £71.09
No. of packs Pack price
1+ £71.09
100
TUI105-BZP Round Metal Insert £71.61
No. of packs Pack price
1+ £71.61
100
TUI106-BZP Round Metal Insert £93.44
No. of packs Pack price
1+ £93.44
100
TUI107-BZP Round Metal Insert £120.42
No. of packs Pack price
1+ £120.42
10+ £101.15
100 Buy Request sample
Thread D D1 Finish
M6 19.0 17.0 Zinc and Clear Passivate
M6 22.2 20.2 Zinc and Clear Passivate
M6 25.4 23.4 Zinc and Clear Passivate
M8 25.4 23.4 Zinc and Clear Passivate
M8 31.8 29.8 Zinc and Clear Passivate
M8 38.0 36.0 Zinc and Clear Passivate

All dimensions are mm unless specified.

  • Technical
  • Specifications
Thread
M8
D
25.4
D1
23.4

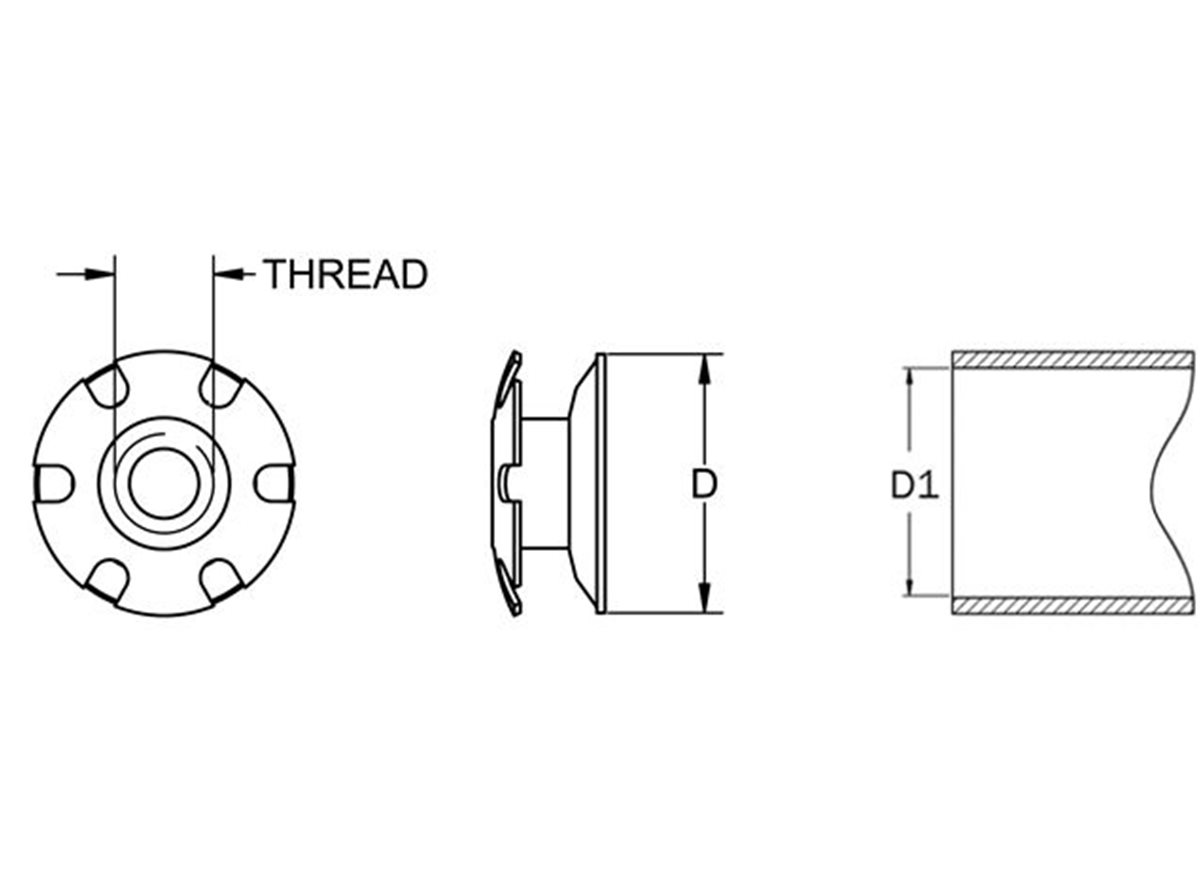

Round Tube Insert | Threaded | Metal Insert | M8 x 25.4mm Dia dimension guide
Product Code
TUI105-BZP
Description
Round Metal Insert
Product
Tube Inserts
Thread Size
M8
Tube Outside Dia (mm)
25.4
Type
Metal Insert

All dimensions are mm unless specified.
