Female Lobe Knob
Male Lobe Knob

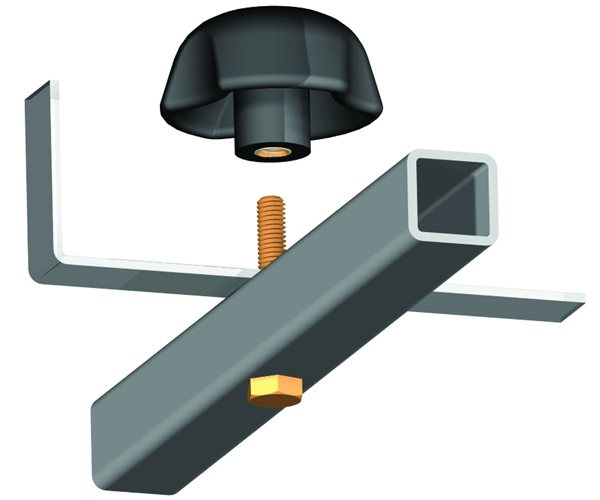

Lobe Knob | M8 x 50mm Dia | Female slide 3
Please note: this is a representative image and may differ from the actual product.

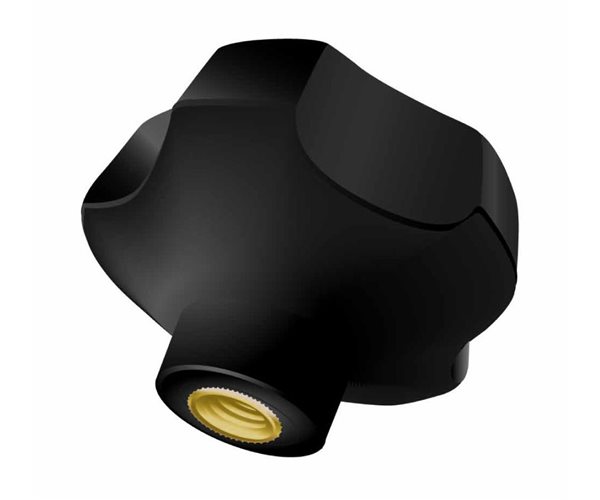

Lobe Knob | M8 x 50mm Dia | Female slide 1
Lobe Knob | M8 x 50mm Dia | Female slide 2
Lobe Knob | M8 x 50mm Dia | Female slide 3

Lobe Knob | M8 x 50mm Dia | Female

KN0134-BLK In stock
£2.60
Pack size: 1
No. of packs Pack price
1+ £2.60
Lobe Knobs are manufactured from high-impact-resistant thermoplastic. Durable and easy to grip, lobe knobs are suitable for a wide range of industrial applications such as machine building.

Available from stock in a standard matt black finish, these Knobs are available with male and female threads.

Material - High-Impact-Resistant Thermoplastic




Drawings and images are for reference only and should not be used for product specification. For new applications we recommend that you carry out assembly tests using samples supplied by us.

PLEASE NOTE - To view all product variations/specification, please scroll the table below from left to right


Code Description PRICE PRICE
BREAKS
PACK
SIZE
STOCK NO
PACKS
BUY SAMPLE CAD
KN0336-BLK Male - Plated Steel Stud £2.23
No. of packs Pack price
1+ £2.23
1 Buy Request sample
KN0132-BLK Female - Brass Insert £1.40
No. of packs Pack price
1+ £1.40
1 Buy Request sample
KN0333-BLK Female - Brass Insert £1.05
No. of packs Pack price
1+ £1.05
1 Buy Request sample
KN0133-BLK Female - Brass Insert £1.67
No. of packs Pack price
1+ £1.67
1
KN0334-BLK Female - Brass Insert £2.23
No. of packs Pack price
1+ £2.23
1 Buy Request sample
KN0134-BLK Female - Brass Insert £2.60
No. of packs Pack price
1+ £2.60
1 Buy Request sample
KN0337-BLK Female - Brass Insert £7.74
No. of packs Pack price
1+ £7.74
1 Buy Request sample
Thread D H1 H2 L W Finish
M10 60 40 16 30 25 Colour Black
M5 30 21 10 - 12 Colour Black
M6 30 21 10 - 12 Colour Black
M6 40 27 12 - 15 Colour Black
M8 40 27 12 - 15 Colour Black
M8 50 33 13 - 18 Colour Black
M12 75 52 20 - 26 Colour Black

All dimensions are mm unless specified.

  • Technical
  • Specifications
Thread
M8
D
50
H1
33
H2
13
L
-
W
18

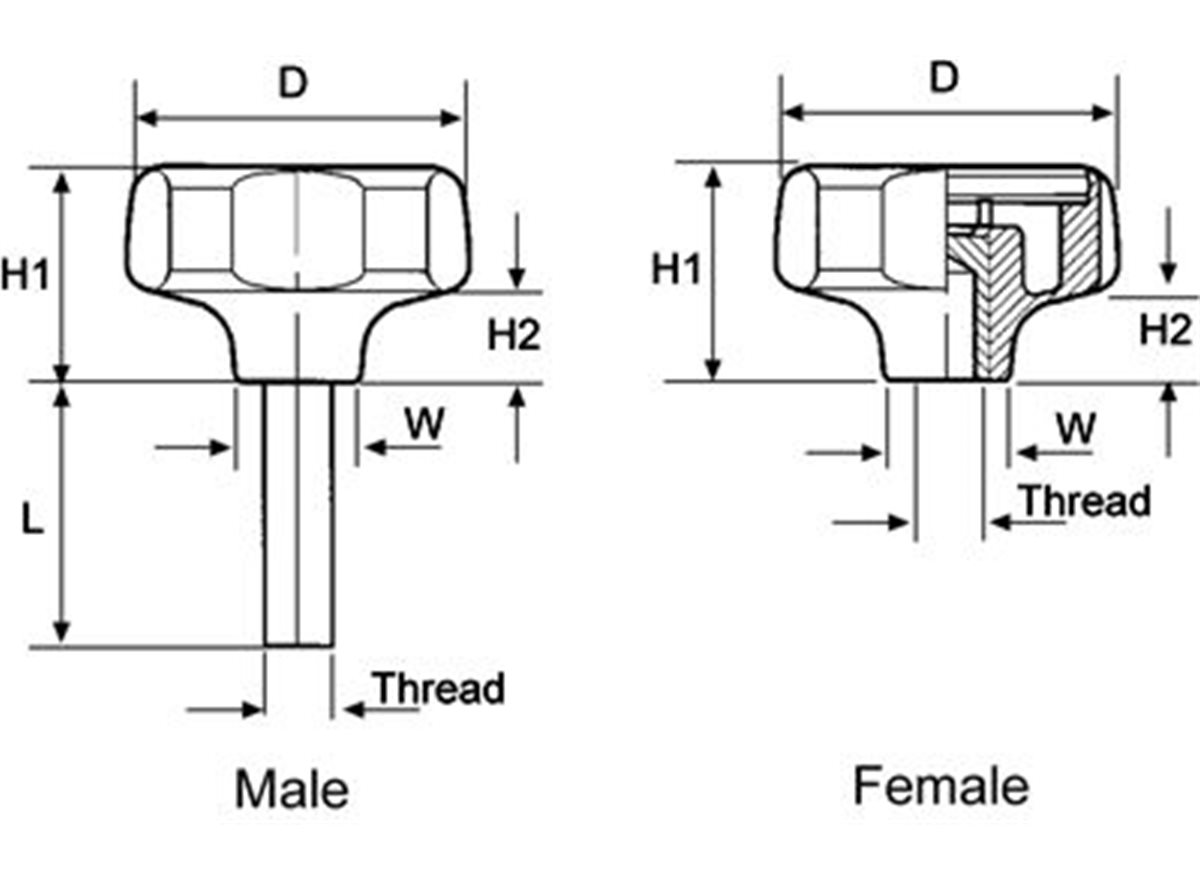

Lobe Knob | M8 x 50mm Dia | Female dimension guide
Product Code
KN0134-BLK
Description
Female - Brass Insert
Fixing Type
Female
Insert
Brass
Offset Height (mm)
13
Overall Diameter (mm)
50
Product
Knobs
Thread / Stud Size
M8
Type
Lobe

All dimensions are mm unless specified.
