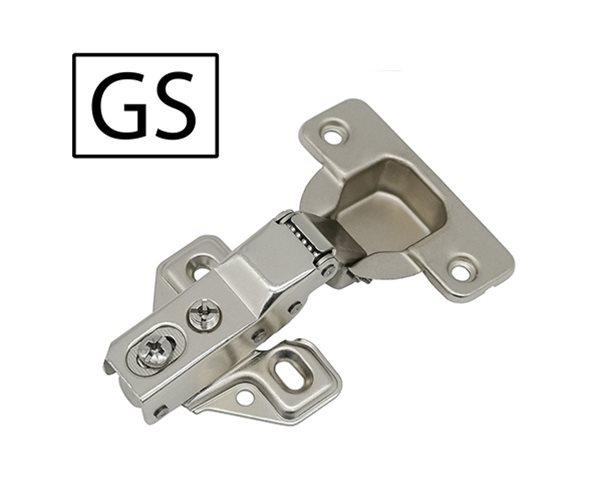

HIN391 | Soft Close Cabinet Hinges | Short Arm | GS
HIN391 | Soft Close Cabinet Hinges | Short Arm | GS
HIN391 | Short Arm Cabinet Hinge Showing Soft-Close Mechanism

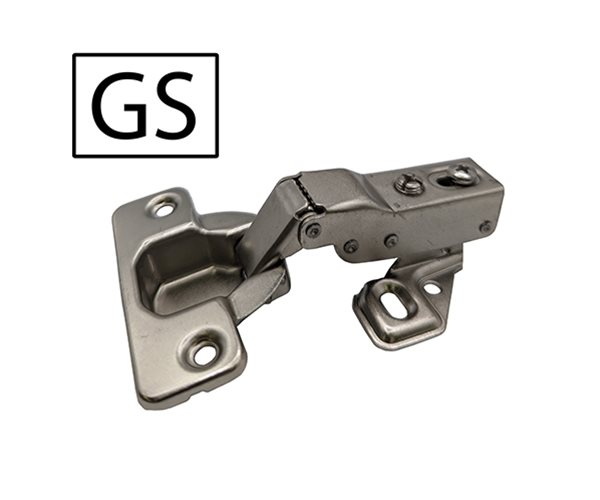

Cabinet Hinge Half Overlay | HIN392
Please note: this is a representative image and may differ from the actual product.

Soft Close Cabinet Hinges | Short Arm | Half Overlay | GS slide 1

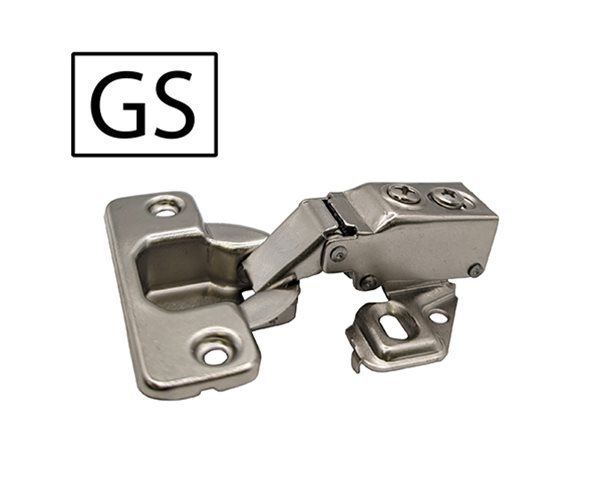

Soft Close Cabinet Hinges | Short Arm | Half Overlay | GS slide 2

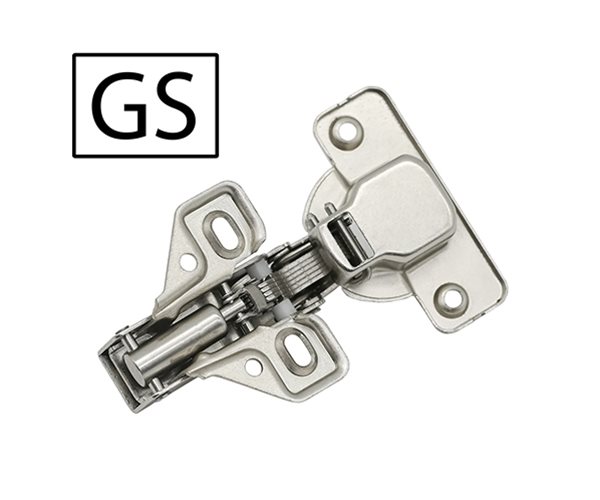

Soft Close Cabinet Hinges | Short Arm | Half Overlay | GS slide 3
Soft Close Cabinet Hinges | Short Arm | Half Overlay | GS slide 4

Soft Close Cabinet Hinges | Short Arm | Half Overlay | GS

HIN392-NI In stock
£5.32
Pack size: 4
No. of packs Pack price
1+ £5.32
12+ £4.79
24+ £4.26

These short arm soft close cabinet hinges are an excellent choice for cabinetry where space is limited, offering a compact and efficient solution. With a 95º opening angle and a sleek short arm design, they are perfect for tight spaces, making them ideal for applications such as caravans, campers and vehicle conversions.

The soft-closing mechanism ensures quiet and smooth operation, preventing doors from slamming and adding a touch of convenience to your cabinets. These screw-on hinges are versatile, suitable for both full overlay and half overlay installations and feature a 35mm cup diameter with an 11.3mm depth for a secure and reliable fit.


Key Features

  • Compact short arm design
  • Soft closing mechanism for smooth operation
  • 95º opening angle
  • Screw-on for easy installation
  • Compatible with full overlay and half overlay doors
  • 35mm cup diameter with 11.3mm depth
  • Includes hinge plate (screws not supplied)
  • Durable steel construction with a nickel-plated finish



K = Offset from edge of the hole to edge of door.

Material - Steel
Finish - Nickel plate


For larger quantities, please contact our sales team to discuss bulk pricing.





Drawings and images are for reference only and should not be used for product specification. For new applications we recommend that you carry out assembly tests using samples supplied by us.

PLEASE NOTE - To view all product variations/specification, please scroll the table below from left to right


Code Description PRICE PRICE
BREAKS
PACK
SIZE
STOCK NO
PACKS
BUY SAMPLE CAD
HIN391-NI Full Overlay £5.32
No. of packs Pack price
1+ £5.32
12+ £4.79
24+ £4.26
4 Buy Request sample
HIN392-NI Half Overlay £5.32
No. of packs Pack price
1+ £5.32
12+ £4.79
24+ £4.26
4 Buy Request sample

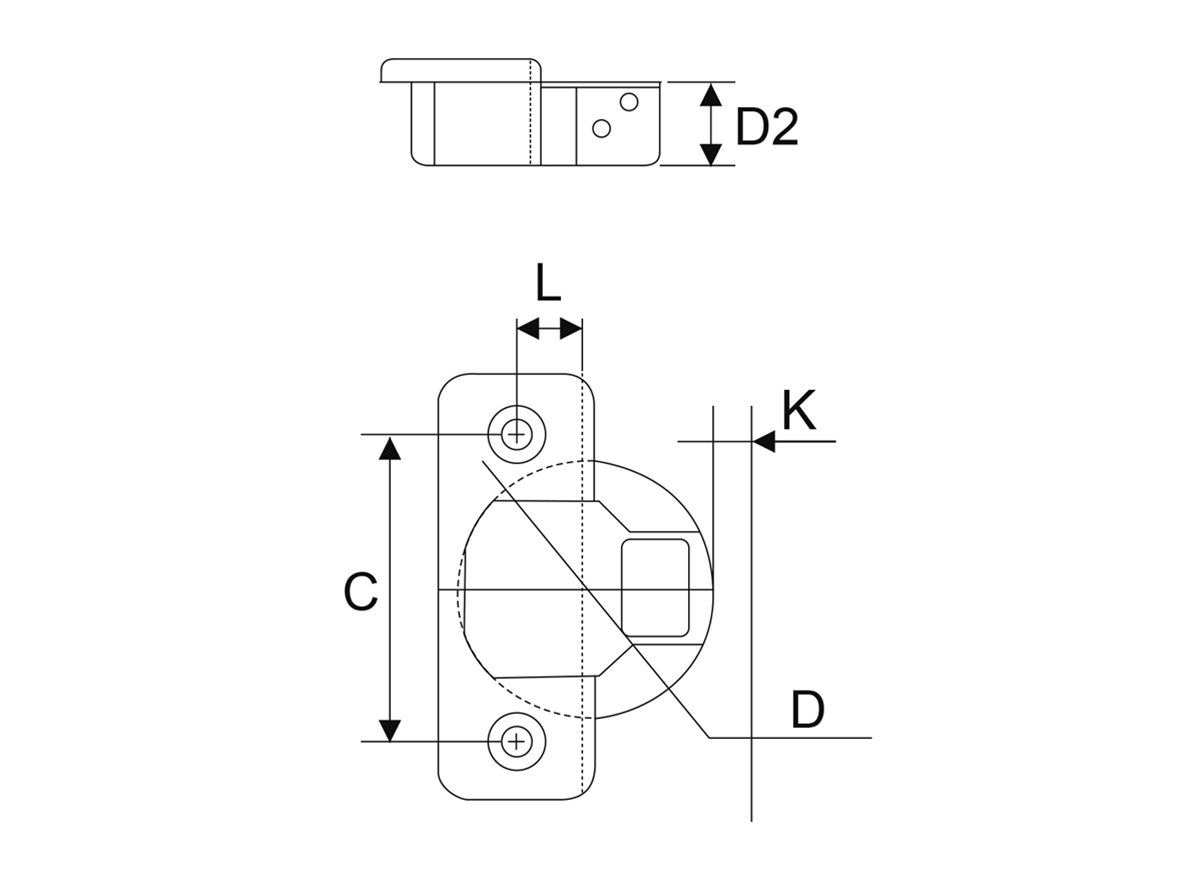

C L K D D2 Finish
48.0 6.0 3 - 6 35.0 11.3 Nickel
48.0 6.0 3 - 6 35.0 11.3 Nickel

All dimensions are mm unless specified.

  • Technical
  • Specifications
C
48.0
L
6.0
K
3 - 6
D
35.0
D2
11.3
Short Arm Soft Close Cabinet Hinges
Product Code
HIN392-NI
Description
Half Overlay
Brand
GS
Opening Angle
95°
Overlay
Half
Product
Hinges
Type
Soft Close, Soft Close

All dimensions are mm unless specified.
